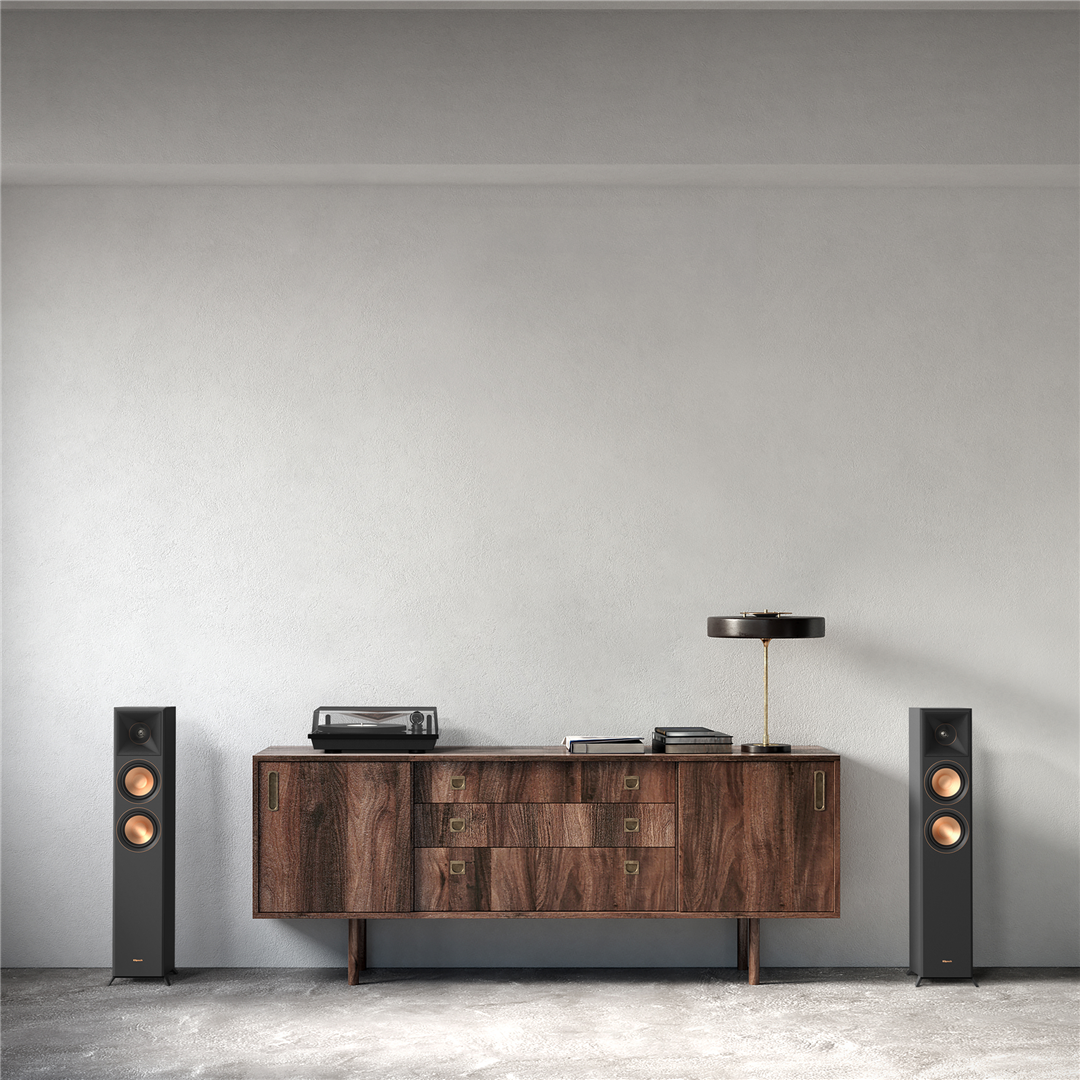

The RP-5000F II floor standing speakers are the latest edition of the renowned Reference Premiere collection. With a modern design, the speakers house renowned Silicone Tractrix Horn technology and newly-fashioned Cerametallic Woofers, delivering a precise frequency response, remarkable sensitivity and incredible sound.. With every detail of these speakers being diligently considered, from the advanced cabinet design, down to the dual input terminals and cast aluminium feet, the RP-5000F II is a fantastic indication at what we should be expecting from a speaker at this level.
90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximises efficiency and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed moulded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimises distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.
CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New voice coils are 70% larger in diameter resulting in improved power handling and greater cone control for greater linearity and flawless reproduction. New aluminium shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.
TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.
BI-WIRING / BI-AMPING CAPABILITY
Dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high and low frequency current into separate speaker cables, reducing intermodulation distortion, for clearer midrange. Bi-amping allows for customization using outboard crossovers when using separate amplifiers.
ADVANCED CABINET DESIGN
Additional bracing and a divided cabinet have been added to minimise cabinet resonances and vibration, for the utmost transparency and clarity.
REFINED ATMOS CONNECTIONS
Upgrading to Dolby Atmos is extremely easy with the simple and hidden connections located on the back of the speakers. These refined connections reduce the amount of wire seen and hold them in place for better wire management.
NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminium binding posts for any connection type.
FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch-resistant finish. The cast aluminium feet provide a more modern look with less resonance than MDF or ABS plastic. They are mechanically designed to minimize surface area in contact with the floor, decoupling the speaker for faster, tighter low frequencies and more detail.
The attractive grille attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece and the runner bumpers of the previous generation have been replaced with Cork pads, for increased security on a stand or table.
Features
1" Titanium LTS Vented Tweeter with Hybrid Tractrix Horn
Dual 5.25" Spun Copper Cerametallic Woofers
Bass Reflex via dual-chamber rear-firing Tractrix® Ports
Premium Scratch Resistant Ebony and Walnut vinyl finishes
Bi-Amp and Bi-Wire capable
Specifications
| Frequency Response: |
40-25kHz +/- 3dB |
| Sensitivity: |
95dB @ 2.83V / 1m |
| Power Handling (Cont/Peak): |
100W / 400W
|
| Nominal Impedance: |
8Ω Compatible |
| Crossover Frequency: |
1900Hz |
| High Frequency Driver: |
1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
| Low Frequency Driver: |
Dual 5.25" Cerametallic Cone Woofers with Faraday rings |
| Enclosure Material: |
MDF (Internally braced) |
| Enclosure Type: |
Bass Reflex via dual chamber rear-firing Tractrix® Ports |
| Inputs: |
Dual aluminium binding posts / bi-wire / bi-amp with Dolby Atmos® passthrough |
| Dimensions (H x W x D): |
91.7 x 20.7 x 37.5cm |
| Weight: |
17.55kg |
| Finishes: |
Ebony vinyl, Walnut vinyl |
